Company: Miyamae Co., Ltd. · Brand: Miya Epoch (MiyaEpoch) · Headquarters: Osaka area, Japan · Category: Electric reels, deep-sea and professional
Daiwa and Shimano make electric reels as part of a huge tackle catalog. Miya Epoch makes electric reels, and almost nothing else. The Japanese brand has been developing electric reels for more than 50 years, according to its Australian distributor. Its Command reels are known among serious deep droppers, teaser and dredge crews, and commercial-style anglers for one thing: sustained pulling power from very deep water.
This review covers the full current Miya Epoch range, how the series are organized, what the numbers mean, and how to buy and service a Miya in the US.
Company overview
Miya Epoch reels are made by Miyamae Co., Ltd. (miyamae.co.jp), which runs a customer call center on an Osaka (06) number, +81-6-6782-1010, Monday–Friday, 9:00–17:00 Japan time. The reels are designed and manufactured in Japan.
Miya Epoch organizes its lineup by the size of fish, and in Japan by technique. The range runs from mid-size reels for amberjack and snapper to “ultra-big fish” reels built for tuna and very deep bottom fishing. Several models come in 12V and 24V versions, which is unusual among Japanese electrics and important for bigger boats.
At a glance
| Manufacturer | Miyamae Co., Ltd., Japan |
| Phone (Japan) | +81-6-6782-1010 |
| Websites | miyaepoch.jp (products) · miyamae.co.jp (corporate) |
| Series | CZ (large/ultra-large), AT and AC (medium) |
| Voltage | 12V, with 24V versions of several large models |
| Top instant winding force | 120 kg (CZ-30) |
| US sources | Technotren (importer), Melton Tackle, Alltackle |
| Australian distributor | Miya Epoch Australia, Gold Coast |
Deep-drop.com’s own gear resources list Miya among the electric reels serious deep droppers use, alongside Banax and Lindgren-Pitman.
How the range is organized
Miya Epoch groups its reels into three size classes:
| Class | Models | Typical line |
|---|---|---|
| Ultra-large | CZ-30, CZ-20, CZ-15, plus CZ-30 / CZ-20 Tuna Special and CZ-15 Kinme Special | PE #30, 700–1,000 m |
| Large | CZ-10SP, CZ-10HP, CZ-9, CZ-9s | PE #10–#20, 1,600–1,200 m |
| Medium | AT-5S, AT-3S, CAC-5SC, AC-3JP, AC-3JPC | PE #6–#8, 500–800 m |
A note on “PE” sizes: Japanese braid is rated by PE number, not pound test. As a rough guide, PE #10 is about 100 lb class and PE #30 is about 300 lb class braid, though ratings vary by brand. Spool capacities are quoted in meters of Japanese PE line, so check how much of your braid will fit before planning a 1,500-foot drop.
Ultra-large: CZ-30, CZ-20, CZ-15
These are the heavyweights, built for tuna and the deepest bottom fishing.
| Model | Headline spec (manufacturer) |
|---|---|
| CZ-30 | 120 kg instant maximum winding force |
| CZ-20 | 115 kg motor, fishing power control |
| CZ-15 | 110 kg high-power motor |
Special editions
– CZ-30 Tuna Special and CZ-20 Tuna Special, tuned for tuna fishing
– CZ-15 Kinme Special, built for kinme (splendid alfonsino), a Japanese deep-water fish caught at the same kind of depths Florida anglers fish for tilefish and barrelfish
In Australia, the distributor sells the CZ-15 APJ in 12V and 24V versions.
Who they’re for: Boats fishing very deep with heavy braid for big fish, and anyone who wants the most winding force in a Japanese electric. These are boat-powered reels. Plan your wiring before you buy.
Large: CZ-10SP, CZ-10HP, CZ-9, CZ-9s
This is the size most Florida deep droppers will look at: big enough for heavy line and big fish, without the bulk of a CZ-30.
CZ-10SP (manufacturer specifications)
- Voltage: DC 12V (product code 04436) or DC 24V (04443)
- Instant maximum winding force: 110 kg (12V) / 115 kg (24V)
- Sustained winding force: 50 kg (12V) / 60 kg (24V)
- Drag: 40–110 kg
- Max winding speed: 90 m/min, no load
- Weight: 5.3 kg · Ball bearings: 10
- Finish: premium titanium color
- Line capacity (Miya “NEW DEEP SENSOR” PE): PE #10 1,600 m · PE #12 1,400 m · PE #15 900 m · PE #20 800 m · PE #30 500 m
- Features: automatic delivery (drops line at the flip of a switch), automatic shakuri (jigging) function, depth memory, hoisting force control, drag assist lever, click-sound brake against backlash
CZ-9 (manufacturer specifications)
- Voltage: DC 12V or DC 24V
- Max hoisting force: 75 kg (12V) / 110 kg (24V)
- Drag: 40–110 kg
- Winding speed: 110–120 m/min, no load
- Line capacity: from PE #10, 1,600 m to PE #30, 500 m
- Features: fishing power control that automatically manages the motor under heavy load when a big fish hits, drag assist lever, depth memory, power handle, guard arm, click-sound brake
- Target species (per Miya): red bream, greater amberjack, yellowfin tuna and other large game fish

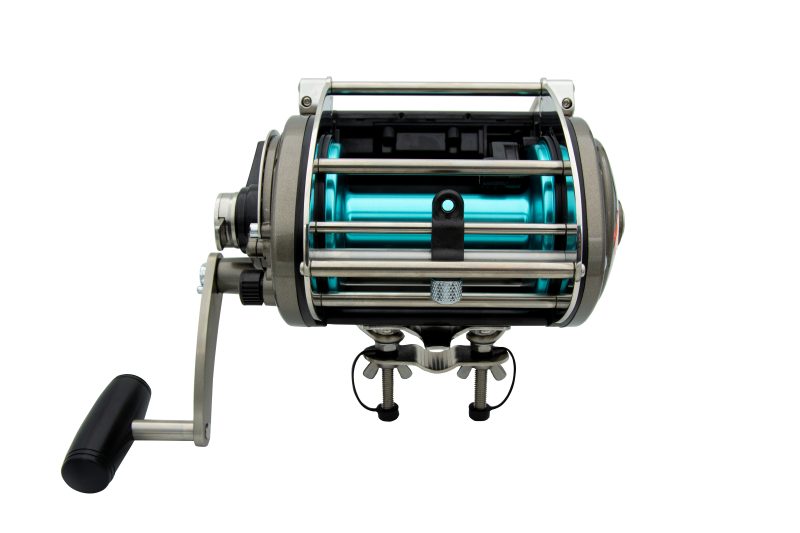

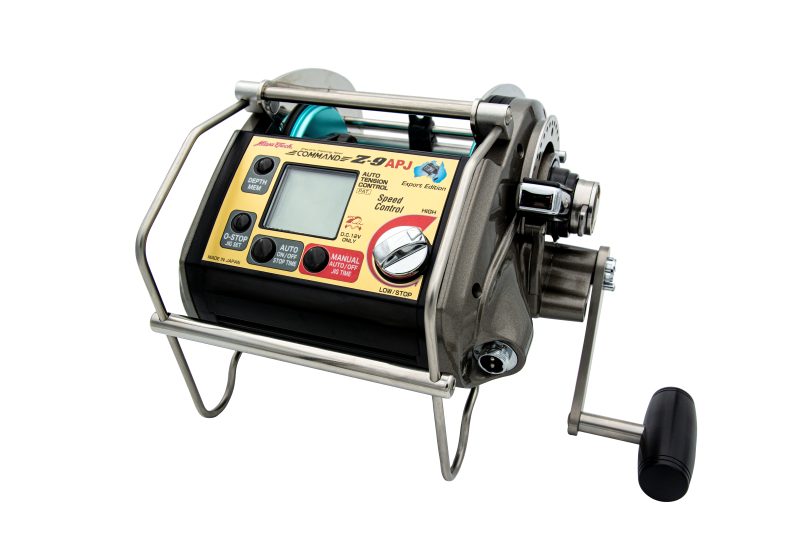

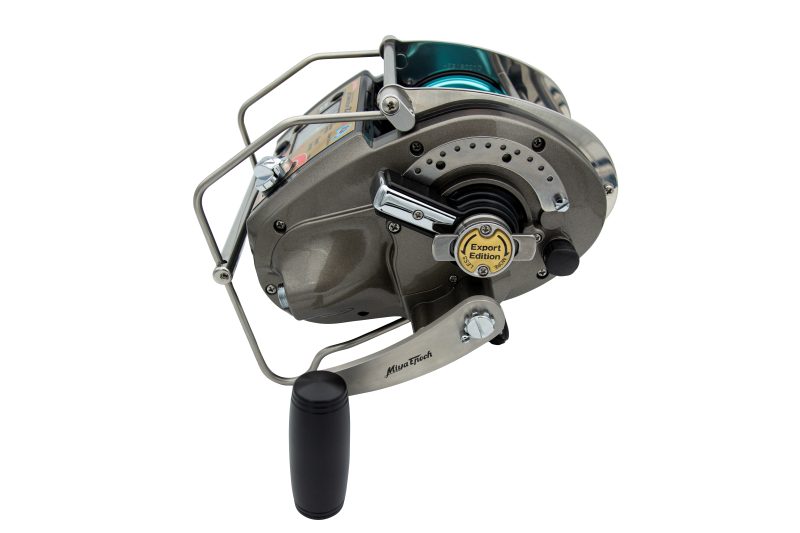

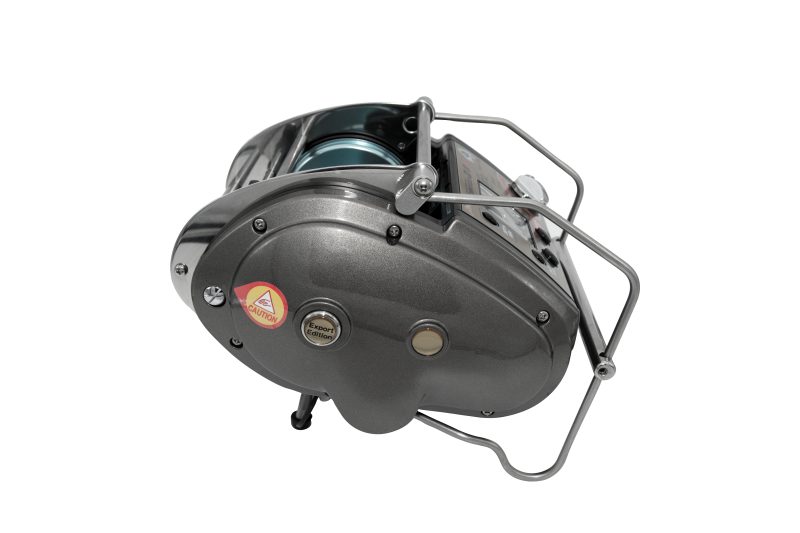

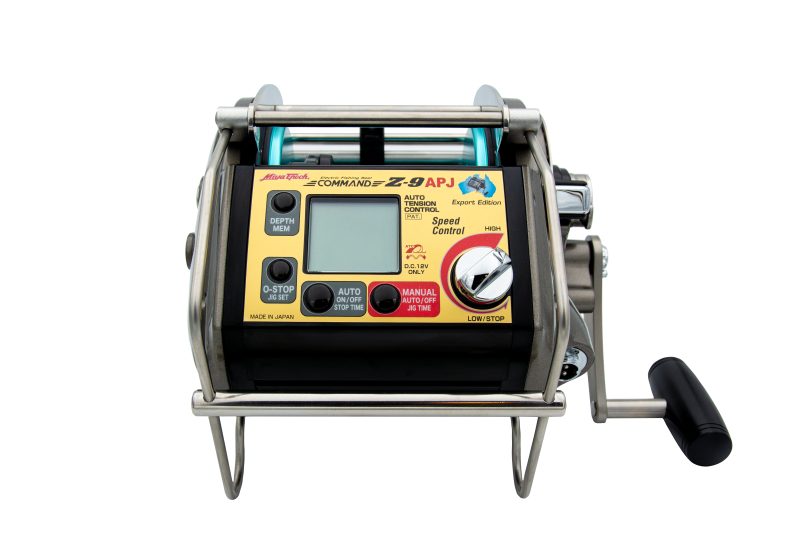

Images: Miya Epoch Australia
Miya describes the CZ-9 as its newest deep-sea reel. The CZ-9s adds a new drag liner, and the CZ-10HP is a high-power motor version of the 10 size. In Australia, the CZ-9 APJ is sold as a core model.
12V vs 24V: The spec sheets show why 24V matters. The CZ-9 goes from 75 kg of maximum hoisting force at 12V to 110 kg at 24V. If your boat has 24V available, the 24V version gives much more pulling power.
Medium: AT-5S, AT-3S, CAC-5SC, AC-3JP
The medium reels suit PE #6–#8 line at 500–800 m. They’re for amberjack, snapper, grouper and mid-depth drops.
- AT-5S and AT-3S: power control function models. The AT-3S is rated at 55 kg instant maximum winding force and holds 700 m of PE #6. Both are core models in Australia.
- CAC-5SC: 64 kg instant maximum hoisting force
- AC-3JP / AC-3JPC: professional models with titanium paint
Who they’re for: Anglers who want Miya’s build and control features in a size you can realistically fish on a standard deep drop rod.
Using a Miya in Florida
Rods: The heavier CZ reels need a stout rod and a solid reel seat. See Deep Drop Rods for US builders making 80–130 lb class bent-butt rods.
Power: Large CZ reels are built for boat power, at 12V or 24V. For the smaller AT and AC reels, some US lithium battery makers, including BatPower, list compatibility with Miya Epoch reels. Always check the current rating against your reel. See Reel Batteries.
Teasers and dredges: US retailer Alltackle sells Miya Epoch models as electric teaser reels as well as fishing reels. Miya reels are used for trolling, jigging, deep drop bottom fishing and teasers.
Pros and cons
Pros
- A dedicated electric reel maker with more than 50 years of development
- Very high winding force, up to 120 kg on the CZ-30
- 24V versions of several large reels, with big power gains over 12V
- Advanced control features: automatic delivery, automatic jigging, fishing power control, depth memory
- Species-specific editions (Tuna Special, Kinme Special)
Cons
- Limited US distribution through an importer and a few specialist dealers
- Specs are in metric and Japanese PE sizes, so plan line capacity carefully
- Heavy: the CZ-10SP weighs 5.3 kg
- US pricing isn’t published by the manufacturer, so get dealer quotes
- Service goes through importers or overseas, not a US factory
Miya Epoch vs. the competition
| If you want… | Consider |
|---|---|
| Maximum Japanese electric power, 24V option | Miya Epoch CZ-9 / CZ-10SP / CZ-15 |
| A compact reel you can hold while deep dropping | Daiwa Seaborg 500J |
| A South Florida deep drop and kite reel | Shimano ForceMaster A 9000 |
| US-built commercial reel with local factory service | Lindgren-Pitman |
| Level-wind electric from Miami | Kristal Fishing |
Where to buy and service Miya Epoch reels
Manufacturer (Japan)
– Miyamae Co., Ltd. / MiyaEpoch: miyaepoch.jp · Call center +81-6-6782-1010 (Mon–Fri, 9:00–17:00 JST)
United States
– Technotren, US importer of Miya Epoch electric, teaser and kite reels: store.technotren.com
– Melton Tackle: Miya Epoch collection · meltontackle.com
– Alltackle: Miya Epoch electrics and teaser reels · alltackle.com
Australia
– Miya Epoch Australia (Gold Coast, QLD): 1300 649 228 · [email protected] · miyaepoch.com.au. Offers reel service and spare parts request forms, and keeps a discontinued-model list.
Miya Epoch pricing varies by importer and exchange rate. Contact dealers for current quotes and confirm who handles warranty service before you buy.
Verdict
Miya Epoch is the specialist’s electric reel. If you fish very deep, run heavy braid, or pull teasers and dredges on a boat with 24V power, the CZ-9 and CZ-10SP offer pulling power and control features that mainstream Japanese electrics don’t match. Their 24V versions are a clear step up. The trade-offs are weight, limited US distribution and service that goes through importers. For most recreational deep droppers a Daiwa or Shimano is easier to live with. For crews who want the most capable Japanese electric, Miya is the one to get.
Deep-Drop.com rating: Power 5/5 · Features 5/5 · Build quality 4.5/5 · Value 3.5/5 · US availability 2.5/5
FAQ
Who makes Miya Epoch reels?
Miyamae Co., Ltd. in Japan. The reels are designed and manufactured in Japan.
What is the most powerful Miya Epoch reel?
The CZ-30, rated at 120 kg instant maximum winding force.
Should I get a 12V or 24V Miya Epoch?
If your boat has 24V, the 24V versions are much stronger. The CZ-9’s maximum hoisting force rises from 75 kg at 12V to 110 kg at 24V.
Where can I buy Miya Epoch reels in the US?
Through the US importer Technotren and dealers such as Melton Tackle and Alltackle.
Specifications were checked against miyaepoch.jp product pages, Miya Epoch Australia and US retailer listings on September 25, 2026. Line capacities are manufacturer figures for Miya’s own PE line.
