Company: Abyss Battery · Headquarters: 1920 West Bay Drive, Largo, Florida · Category: Portable electric fishing reel batteries, plus marine lithium batteries
A portable battery changes how you fish an electric reel. There’s no cable running across the deck, no search for a plug on the gunwale, and every rod holder becomes a deep drop station. Abyss Battery, based in Largo on Florida’s Gulf coast, makes two purpose-built reel batteries, the 10Ah Deep-Drop and the 5Ah Kite Reel, plus cords, cases and chargers for Daiwa, Shimano and Banax reels.
This review covers both batteries, what the specs mean for a day offshore, which reels they fit, and Abyss’s warranty, which is one of the better ones in the category.
Company overview
Abyss Battery is a Florida company specializing in lithium iron phosphate (LiFePO4) batteries. Besides fishing reel batteries it makes 12V, 24V, 36V and 48V trolling motor batteries, marine chargers and inverters, Bluetooth-enabled batteries, golf cart and powersport batteries, and portable power stations. The company lists certifications including ISO 9001, ISO 14001, UL1642, IEC/UL 62133, CE, RoHS and UN38.3.
At a glance
| Address | 1920 West Bay Drive, Largo, FL 33770 |
| Phone | 1-855-719-1727 |
| [email protected] | |
| Support hours | Mon–Fri, 9 AM–5 PM ET |
| Reel batteries | Deep-Drop (10Ah), Kite Reel (5Ah) |
| Warranty | 2-year free replacement on reel batteries, then 35% off replacements through year 5 for manufacturing defects |
| Fits | Daiwa (Tanacom, Seaborg), Shimano BeastMaster, Banax Kaigen, with the correct cord |

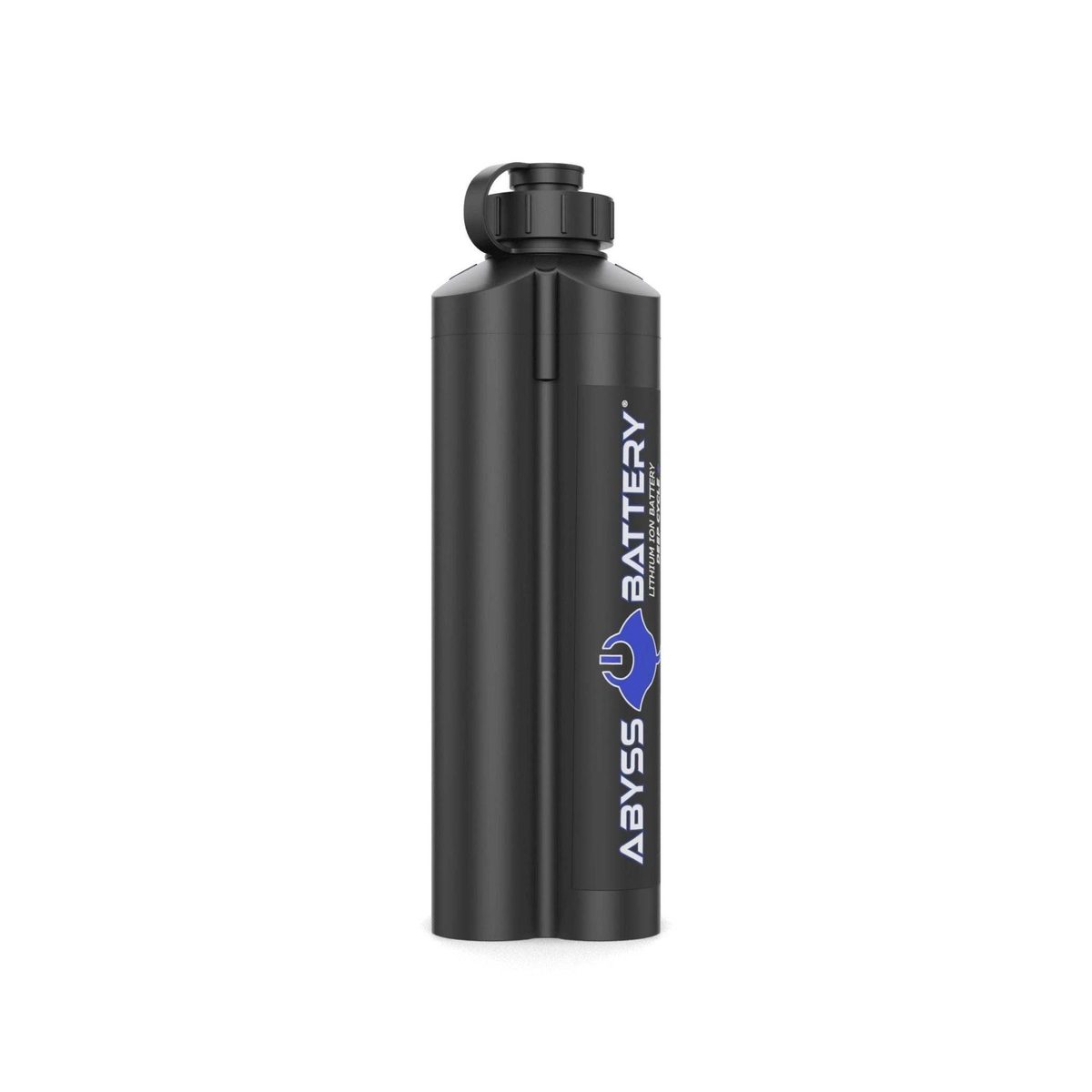

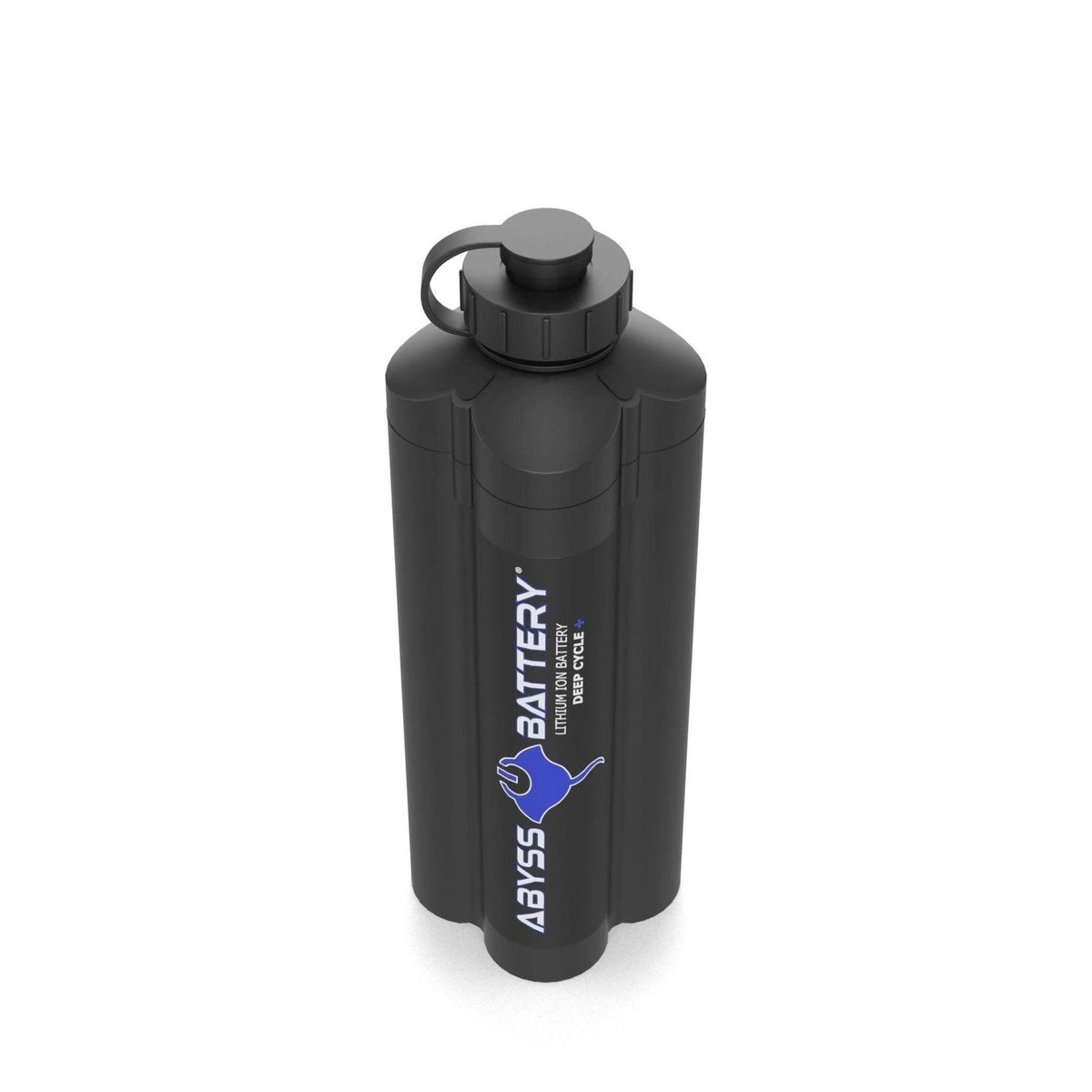

ABYSS Deep-Drop Electric Fishing Reel Battery: $299.99
Images: Abyss Battery
Specifications (manufacturer)
| Voltage | 14.8V (listed as dedicated for electric reels) |
| Capacity | 10Ah (listed as 120Wh) |
| Chemistry | LiFePO4 |
| Dimensions | 2″ × 2″ × 7.5″ |
| Weight | 1.6 lb (730 g) |
| Case | Waterproof, IP67-sealed ABS with 24-karat gold-plated terminals |
| Charger | 2A lithium charger, 16.8V output |
| Charge time | About 1.2–1.5 hours |

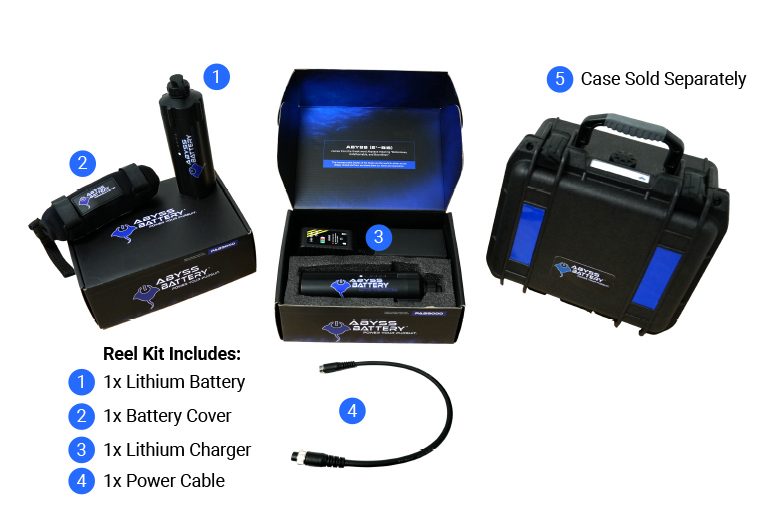

| Included | Battery, neoprene holster with Velcro straps, 2A charger, power cable |
| Price | $299.99 |
Connector options (choose one)
1. Daiwa Tanacom / Shimano BeastMaster / Seaborg 500–750
2. Seaborg MJ800–1200
3. Banax Kaigen
Run time: Abyss’s collection page advertises up to 18 hours of continuous power, and the product page says users report all-day performance from 300 to 1,200 feet. As always, the real figure depends on depth, lead weight, current, the reel and how many drops you make.
A note on the specs: The listed figures don’t quite add up. LiFePO4 packs are usually 12.8V nominal, 14.8V is typical of other lithium chemistries, and 10Ah at 14.8V would be about 148Wh, not 120Wh. Before you buy, ask Abyss to confirm the chemistry, nominal voltage and maximum continuous current for your reel, especially a high-draw reel like the Daiwa Seaborg 800MJ, which Daiwa rates at up to 20 A peak.
Who it’s for: Recreational deep droppers running compact and mid-size Japanese or Korean electrics (Daiwa Tanacom and Seaborg, Shimano BeastMaster, Banax Kaigen) who want to fish without boat wiring.
ABYSS Electric Kite Reel Battery: $199.99
Specifications (manufacturer)
| Voltage | 14.8V |
| Capacity | 5Ah (60Wh) |
| Chemistry | LiFePO4 |
| Dimensions | 2″ × 2″ × 3.75″ |
| Weight | 1.1 lb (365 g) |
| Charger | 2A, 16.8V · about 1.2 hours |
| Included | Battery, neoprene holster, 2A charger |
| Price | $199.99 |
It connects directly to Daiwa Tanacom reels, and specialized cords are available for Seaborg and Banax. Abyss says the battery “fits within the palm of your hand.” Customer reviews quoted on the product page mention “6 hours of solid fishing time” and a 17-hour deep drop trip with charge left over.
Who it’s for: South Florida kite fishing, and lighter deep drop days with smaller reels. It’s also a good second battery to keep in the console.
Accessories
| Item | Price | Notes |
|---|---|---|
| Waterproof Hard Case | $79.99 | Pressure equalization valve, dustproof and crushproof |
| Reel Battery Power Cords | $29.99 | Versions for Daiwa, Seaborg and Banax; waterproof and thermally insulated |
| Deep Drop Battery Neoprene Case | $24.99 | Velcro straps, clip-on loop (sold out at time of writing) |
| Kite Reel Battery Neoprene Case | $19.99 | Compact, with clip-on loop (sold out at time of writing) |
| 2A Charger | $39.99 | 16.8V, full charge in about 1.5 hours |
| 4-pin SIMRAD power cable kit | $49.99 | Connects an Abyss reel battery to a standalone marine power system |
Choosing between the two Abyss batteries
| Your fishing | Pick |
|---|---|
| Full day of deep dropping, 300–1,200 ft | Deep-Drop 10Ah |
| Kite fishing, or a small reel on short trips | Kite Reel 5Ah |
| Several electric rods on one boat | One Deep-Drop 10Ah per rod, plus a spare |
| Seaborg 800MJ–1200 | Deep-Drop 10Ah with the Seaborg MJ800–1200 cord (confirm current rating first) |
How to size a reel battery
Amp-hours (Ah) measure how much energy a pack holds. A 10Ah pack can in theory deliver 1 amp for 10 hours or 10 amps for 1 hour. An electric reel draws little current while dropping and much more while hauling a lead and a fish up from depth. Daiwa’s published figures for the Seaborg 800MJ show the range: 4 A with no load, 7 A rated in high gear, and up to 20 A peak. Deeper drops, heavier leads and stronger current all mean longer, harder hauls and more energy used per drop.
Rules of thumb:
– Count your hauls, not your hours. A day of twelve drops at 1,000 feet uses far more battery than eight hours of kite fishing.
– Size up for depth. If you regularly fish beyond 800 feet, take the 10Ah Deep-Drop, not the 5Ah Kite pack.
– Always check continuous current. A pack’s capacity is useless if its protection circuit cuts out when the reel pulls hard.
Battery care
- Charge after every trip, and store the pack partly charged if it’ll sit for weeks.
- Rinse the holster and cord ends with fresh water. Salt on the connector is the most common cause of reel power problems.
- Keep the pack shaded. Lithium packs don’t like sitting on a hot deck in the Florida sun.
- Use the supplied charger. Abyss specifies a 16.8V, 2A charger for its reel batteries.
Pros and cons
Pros
- A Florida company (Largo) that also makes marine lithium batteries
- Light and compact: the 10Ah pack weighs 1.6 lb
- IP67 waterproof case with gold-plated terminals
- Fast charging (about 1.2–1.5 hours)
- Connector options for Daiwa, Shimano BeastMaster, Seaborg MJ and Banax
- A strong warranty: 2-year free replacement, then 35% off replacements through year 5
Cons
- The published voltage, chemistry and watt-hour figures are inconsistent, so confirm with Abyss
- Maximum continuous current isn’t published on the product page
- Some neoprene cases were sold out
- For commercial reels (Lindgren-Pitman, Kristal, big Miya), use boat power instead
Abyss vs. other reel battery makers
| Brand | Location | Deep drop pack | Price |
|---|---|---|---|
| Abyss Battery | Largo, FL | 10Ah Deep-Drop | $299.99 |
| Black Oak LED | Sarasota, FL | 10Ah Deep Drop (LiFePO4) | $274.50 sale / $343.13 regular |
| BatPower | — | PROF series 7.8Ah & 15Ah | varies |
| PENN Fathom Electric kit | — | 5Ah battery built into the reel | included in kit |
Where to buy Abyss reel batteries
Manufacturer
– Abyss Battery: 1920 West Bay Drive, Largo, FL 33770 · 1-855-719-1727 · [email protected] · abyssbattery.com
– Fishing reel battery collection
Retailers
– White Water Outfitters: Abyss Electric Kite Reel Battery · whitewateroutfitters.com
Verdict
Abyss Battery makes compact, well-built reel batteries in Florida, backed by one of the best warranties in the category. The Deep-Drop 10Ah is the one most deep droppers need, and the Kite Reel 5Ah is a useful second pack for kite days and smaller reels. Because of the inconsistent spec listing, confirm the chemistry, voltage and continuous current rating with Abyss before pairing it with a high-draw reel. With that settled, it’s an easy way to fish an electric reel from any rod holder.
Deep-Drop.com rating: Build quality 4.5/5 · Warranty 5/5 · Value 4/5 · Spec transparency 3/5
FAQ
Where is Abyss Battery located?
1920 West Bay Drive, Largo, Florida 33770.
Which reels does the Abyss Deep-Drop battery fit?
It comes with a connector for Daiwa Tanacom / Shimano BeastMaster / Seaborg 500–750, Seaborg MJ800–1200, or Banax Kaigen.
How long does the Abyss Deep-Drop battery last?
Abyss advertises up to 18 hours of continuous power and says users report all-day performance at 300–1,200 feet. Actual run time depends on your reel and conditions.
What warranty does Abyss give on reel batteries?
A 2-year free replacement warranty, then a 35% discount on replacements through year 5 for manufacturing defects.
Specifications and prices were checked against abyssbattery.com on September 25, 2026.
