Company: Banax Co., Ltd. · Country: South Korea · Battery line: TIMAX-B · Category: Portable batteries for electric reels
Banax’s Kaigen electric reels have become a popular value choice for Florida deep dropping. Banax also makes its own battery line, the TIMAX-B (타이맥스), with Samsung SDI cells, in 8,700 mAh and 10,500 mAh versions. The catch is that TIMAX batteries are sold in Korea, and we found no official US sale. Most American Kaigen owners use a US-sold battery built with a Banax plug instead.
This review covers the TIMAX-B batteries, what the Kaigen reels need, and the best battery options for Kaigen owners in the US.
Company overview
Banax Co., Ltd. is based in Incheon, South Korea (phone +82 32-550-2030). Sources differ on its founding year: Kompass lists 1992, while Fishing.news says the company was founded in 1973 and has a second factory in Weihai, China. Kompass puts its workforce at 100–249 employees. For the reels, see our Banax Electric Reels review.
At a glance
| Country | South Korea (Incheon) |
| Own battery line | TIMAX-B 8700 (LED), TIMAX-B 10500 (LCD), TIMAX-B 3500 |
| Cells | Samsung SDI |
| Korean price | about ₩188,000–₩313,000 |
| US availability | TIMAX not sold officially; US third-party packs with Banax plugs |
| Kaigen power | 12V DC, 9 ft (2.76 m) power cord included |
Banax TIMAX-B batteries
From Korean retailer listings:
| TIMAX-B 8700 | TIMAX-B 10500 | |
|---|---|---|
| Capacity | 8,700 mAh | 10,500 mAh |
| Display | LED fuel gauge | LCD display |
| Cells | Samsung SDI | Samsung SDI |
| Typical price | ₩188,000–₩219,000 | ₩240,000–₩313,000 |
Common features
– Safety circuit rated Max 40 A / Peak 80 A, protecting against overcharge, over-discharge and overload
– KC electrical-safety certified (Korea)
– Impact-resistant polycarbonate case and a splash-resistant design
– Described as cabin-baggage compatible for air travel (check your airline)
– Comes with a carrying case, charging adapter and manual
There’s also a smaller TIMAX-B 3500, listed from about ₩147,000 on Korean price comparison site Danawa.
Published data gaps: Voltage, weight, dimensions, cycle life and charge time aren’t given in the text of the listings we found (they appear to be in images). Confirm them with the seller.
Ratings: 11st, a large Korean retailer, showed a 4.7-star rating from 16 reviews for the TIMAX-B.
What Kaigen reels need
- All Kaigen models (500, 1000, 1500) run on 12V DC and come with a 9 ft (2.76 m) 12V power cord.
- Kaigen 1000: high-torque 12V motor, 45 lb max drag, 90 lb instant winding power, 160 m/min, 1,000 m of 65 lb braid.
- Kaigen 500 / 500TM: twin 12V motors (high-torque and high-speed), 880 g, 230 m/min.
Current draw (Kaigen 1000): Banax doesn’t publish it. On The Hull Truth, vendor Frigate Sales said the reel limits current to 25 A and recommended a 30 A breaker or fuse. An owner reported about 5 A under light load and up to 25 A when “cranked down tight.” Frigate Sales also said the reels perform best at about 14V from engine-charged batteries, work acceptably at 12V, and should be hard-wired (for example a Marinco or Hubbell plug with a 30 A breaker) rather than clipped on.
US battery options for Banax Kaigen

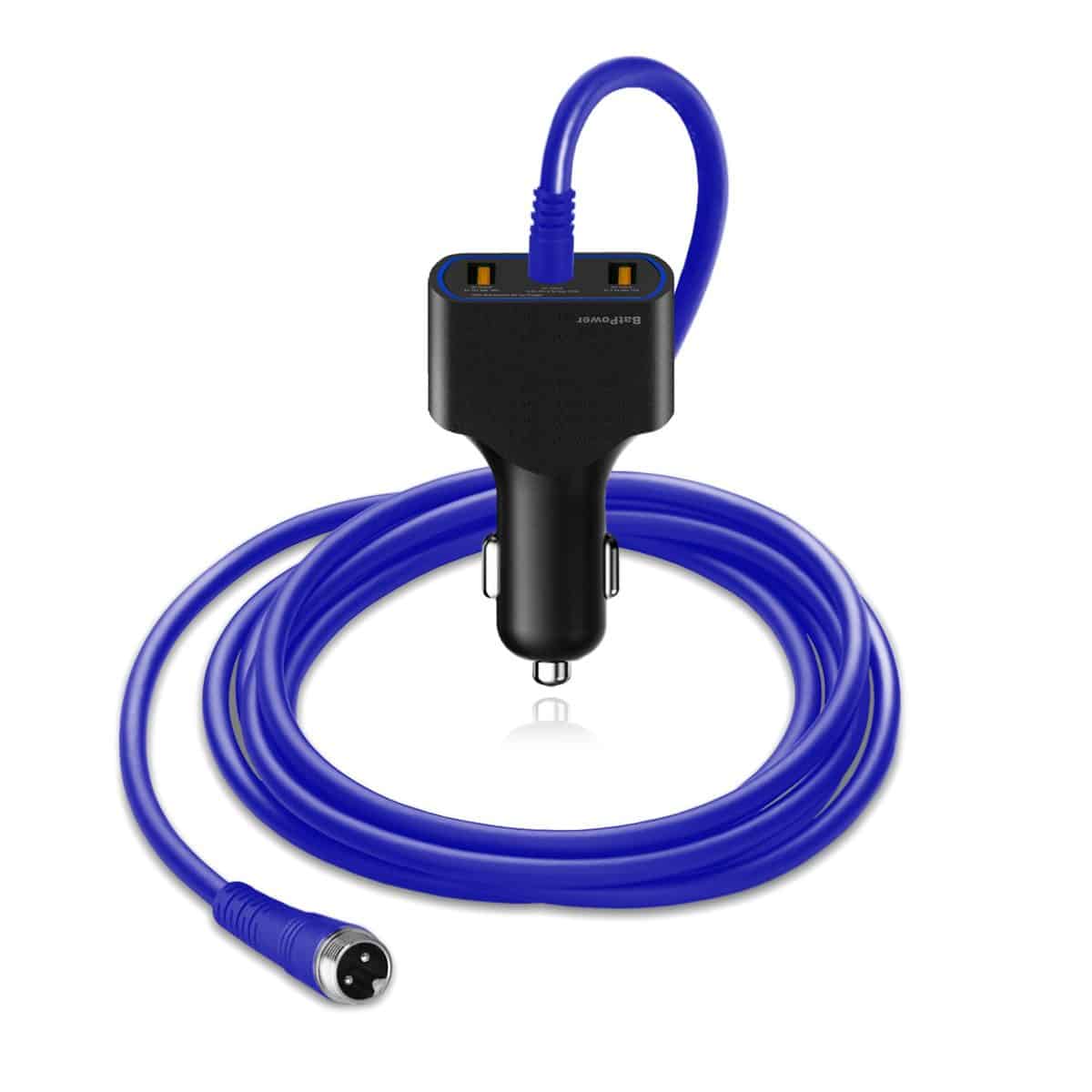

1. BatPower ProK
Built specifically for Banax.
– 7,800 mAh / 99 Wh: $179.99 · 15,000 mAh / 220 Wh: $339.99 (batpower.com)
– Fits the Kaigen 7000 family, 1000, 1500/1500TM, 500 series, 300 and 150
– Not compatible with Daiwa, Shimano or Miya Epoch
– 18-month warranty; BatPower also sells Banax battery cables and 6.6 ft and 18 ft power cords
See our BatPower review.
2. Reel Battery G2 kits (Banax version)
Sold at TackleDirect (888-354-7335):
– G2 Strapped Starter Kit, Banax: $215 (battery, charger, UV neoprene cover, adaptor strap)
– G2 XL Starter Kit, Banax: $295.95
Capacity and voltage weren’t shown on the listings.

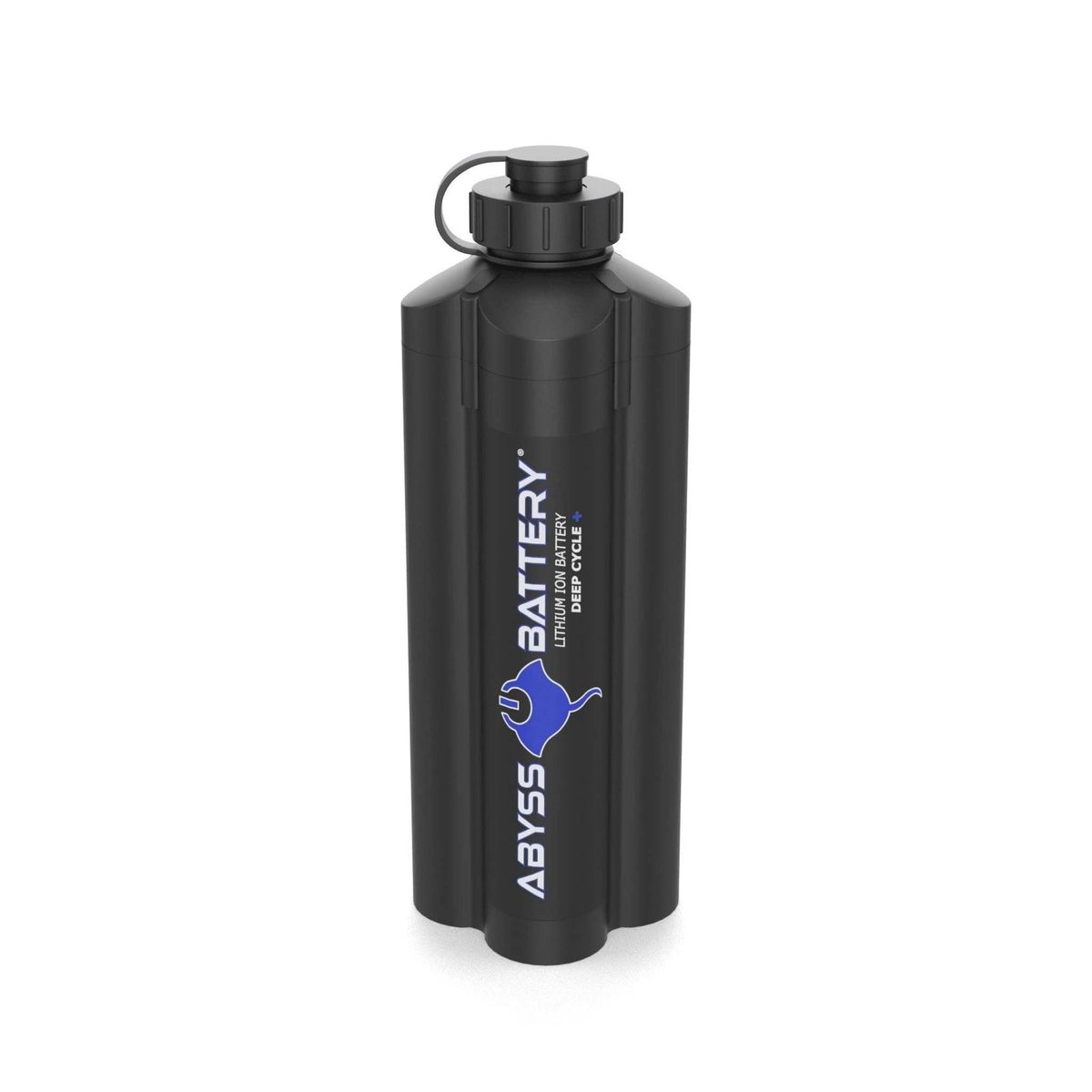

3. Abyss Deep-Drop battery
- 14.8V, 10Ah (120 Wh), 2 × 2 × 7.5 in, 1.6 lb
- Charges in about 1.2–1.5 hours on a 16.8V 2A charger
- Comes with adapter cables for Daiwa/Shimano and Banax Kaigen, plus a neoprene holster, $299.99
- Made by a Florida company (Largo); see our Abyss Battery review
4. Johnny Jigs DN-1700-NS Super Lithium Battery Pack
- 10,400 mAh, 14.8V/16.8V, 42 oz, 8.25 × 4 × 2 in
- Includes a 3A charger, carry case with shoulder strap, digital display and two USB ports
- For Daiwa, Shimano and Banax. The reel power cord isn’t included.
- $289.99 at Johnny Jigs, Pompano Beach
Choosing a battery for your Kaigen
| Your fishing | Suggested power |
|---|---|
| Kaigen 150/500, light to mid-depth | BatPower ProK 7.8Ah or Reel Battery G2 Banax |
| Kaigen 1000/1500, full days deep dropping | BatPower ProK 15Ah, Abyss 10Ah or Johnny Jigs DN-1700-NS |
| Several Kaigens on one boat | Hard-wired 12–14V boat circuits with a 30 A breaker per outlet |
| Traveling to Korea or buying from Korea | Banax TIMAX-B 10500 |
Voltage: Kaigen reels are 12V reels. Several US packs run at 14.8V nominal (16.8V fully charged). Frigate Sales says Kaigens perform best at about 14V, but check with your dealer that a given pack is approved for your Kaigen model before using it.
Wiring and safety
- Fuse every reel circuit. A 30 A breaker or fuse suits the Kaigen 1000’s 25 A limit.
- Use proper plugs, not alligator clips, on hard-wired boat circuits.
- Size wire for the run length, counting the full positive and negative length.
- Keep lithium packs dry and ventilated, and never charge a wet or damaged pack.
- Carry a spare charged pack on long deep drop days if you’re not on boat power.
How long will a battery last?
A rough way to estimate runtime: divide the battery’s capacity by the reel’s average draw. A 10Ah pack feeding a Kaigen 1000 that averages 5–8 A while retrieving gives roughly 1.5–2 hours of winding time. On a deep drop day, the reel spends most of its time sitting on the bottom, so that winding time spreads across many drops. Heavy leads, strong current and big fish raise the draw, so carry more capacity than the math suggests.
Pros and cons
Banax TIMAX-B
– Pros: own-brand battery, Samsung SDI cells, 40 A / 80 A peak protection, LED or LCD display, polycarbonate case
– Cons: sold in Korea only, key specs not published in text, no US warranty support
US options for Kaigen
– Pros: several dedicated Banax-plug packs, US warranties, Florida sources (Abyss in Largo, Johnny Jigs in Pompano Beach)
– Cons: voltage and compatibility vary, some listings don’t publish capacity, and cords are sometimes sold separately
Banax batteries vs. alternatives
| Battery | Capacity | For Kaigen? | Price |
|---|---|---|---|
| Banax TIMAX-B 10500 | 10,500 mAh | Yes (Korea) | ₩240,000–₩313,000 |
| BatPower ProK 15Ah | 15,000 mAh | Yes | $339.99 |
| Abyss Deep-Drop | 10Ah | Yes (Banax cable) | $299.99 |
| Johnny Jigs DN-1700-NS | 10,400 mAh | Yes (cord extra) | $289.99 |
| Reel Battery G2 XL Banax | not listed | Yes | $295.95 |
Where to buy
Florida
– Johnny Jigs Tackle, Pompano Beach · 954-889-4915 · johnnyjigs.com: DN-1700-NS battery and Kaigen reels
– Abyss Battery, Largo, FL · abyssbattery.com
– Half Hitch Tackle (Destin, Panama City, Navarre) · 888-668-9810: Kaigen reels
Online
– BatPower (Covina, CA) · batpower.com: ProK batteries and Banax cables
– TackleDirect: Reel Battery G2 Banax kits
Korea
– TIMAX-B at Korean retailers (eosin.co.kr, ttfish.co.kr, 11st, hgcfishing.com)
Verdict
Banax does make its own battery, the TIMAX-B, with Samsung cells and strong protection circuits, but it’s a Korean-market product. For US Kaigen owners, the practical choices are the BatPower ProK (made for Banax), the Florida-made Abyss pack with its Banax cable, the Johnny Jigs DN-1700-NS, or hard-wiring your Kaigens to boat power with 30 A breakers. For full days deep dropping with a Kaigen 1000, go for 10Ah or more.
Deep-Drop.com rating (TIMAX-B): Build quality 4.5/5 · Spec transparency 2.5/5 · US availability 1/5
US options for Kaigen: Choice 4.5/5 · Florida availability 4.5/5
FAQ
Does Banax make its own battery?
Yes, the TIMAX-B 8700 and 10500 (and a smaller 3500), sold mainly in Korea.
What battery should I use with a Banax Kaigen 1000 in the US?
A Banax-compatible pack such as the BatPower ProK, Abyss Deep-Drop (with Banax cable) or Johnny Jigs DN-1700-NS, or hard-wired boat power with a 30 A breaker.
How many amps does a Kaigen 1000 draw?
Banax doesn’t publish it. A vendor on The Hull Truth said the reel limits current to 25 A, and an owner reported about 5 A under light load.
What voltage are Kaigen reels?
12V DC. They come with a 9 ft 12V power cord.
Details were checked against Banax, Korean retailer listings, Danawa, BatPower, TackleDirect, Abyss Battery, Johnny Jigs and The Hull Truth on September 26, 2026.
