Company: Miyamae Co., Ltd. (brand: Miya Epoch) · Country: Japan · Category: Power for electric reels
Miya Epoch doesn’t sell its own battery. We checked the official “electric reel optional items” list and the Miya Epoch Australia catalog. Both list power cords and accessories, but no batteries or chargers. What Miya Epoch does publish is useful: the voltage and amp draw of each Command reel, and a range of official power cords. For a portable battery, US owners use third-party packs such as BatPower’s ProM, built specifically for Miya Epoch reels.
This guide covers what each Command reel needs, the official cords, 12V vs 24V, and the batteries that fit.
Company overview
Miyamae Co., Ltd. was founded in 1919 and says it developed the world’s first electric spinning reel in 1967. Its Miya Epoch brand makes some of the most respected commercial and big-game electric reels, from the compact AT-5S to the huge Command CZ-20. Miyamae is based in the Osaka area. For the reels, see our Miya Epoch Electric Reels review.
At a glance
| Own battery | None found |
| Official power products | Power cords (2 m, 3 m, 5 m, 10 m) |
| Voltages | 12V; some models 24V (CZ-20, AC-3JP) or 24V only (CZ-9 Kinme Special) |
| Third-party battery | BatPower ProM (7,800 or 15,000 mAh) |
| US agent (per Miyamae) | Technotren, Inc., Torrance, CA |
| Australia | Miya Epoch Australia, Gold Coast |
Power requirements by reel
From Miya Epoch’s official Japanese spec pages:
| Reel | Voltage | Current draw | Max lift | Weight |
|---|---|---|---|---|
| Command CZ-20 | 12V or 24V | 1.4–23 A (12V) · 0.9–12 A (24V) | 110 kg (12V) / 115 kg (24V) | 5.9 kg |
| AT-5S | 12V | 2.6–15 A | 64 kg | 2.3 kg |
| AC-3JP | 12V or 24V | not listed | 43 kg (12V) / 50 kg (24V) | 2.1 kg |
| CZ-9 Kinme Special | 24V only | not listed | 120 kg | not listed |
CZ-20 notes:
– Speed is 110 m/min at 12V and 120 m/min at 24V.
– The 24V model comes with a series connection cord, which means running two 12V batteries in series.
– Technotren’s US page lists the CZ-20 as 12V with optional 24V, and a current of 1.4–20 A at 12V (slightly different from Japan’s 23 A figure).
– Technotren says the CZ-20’s automatic drag control (ATC) conserves battery compared with reels that raise amperage under load.
What this means for batteries: A compact AT-5S peaks at about 15 A, which a good 10Ah+ lithium pack can supply. A CZ-20 at 12V can pull up to about 23 A, so it’s best on boat power or a large, high-current battery. The 24V reels need two 12V batteries in series or a 24V system.
Official Miya Epoch power cords
Japan list prices (excluding tax)
| Cord | Fits | Price | Code |
|---|---|---|---|
| 2 m | G60 only | ¥12,100 | 70073 |
| 3 m | All except G60 | ¥6,100 | 70103 |
| 5 m | All except G60 | ¥6,900 | 70097 |
| 10 m | All except G60 | ¥9,100 | 70080 |
US prices (Alltackle)
– Miya Epoch Electric Reel Cord 15′: $89.99 (in stock, September 2026)
– Miya Epoch Electric Reel Cord 30′: $139.99
Australia (Miya Epoch Australia): 3 m power lead AUD $129.95; 5 m AUD $149.95.
Choosing a length: Use the shortest cord that reaches your battery or outlet. Longer cords mean more voltage drop, which slows the reel under load. The 10 m (30 ft) cord suits reels mounted far from the boat’s batteries.
BatPower ProM: a battery made for Miya Epoch
BatPower (Covina, California) makes the ProM, a lithium battery specifically for Miya Epoch Command reels.
| Version | Price (batpower.com) |
|---|---|
| 7,800 mAh / 99 Wh | $179.99 |
| 15,000 mAh / 220 Wh | $339.99 |

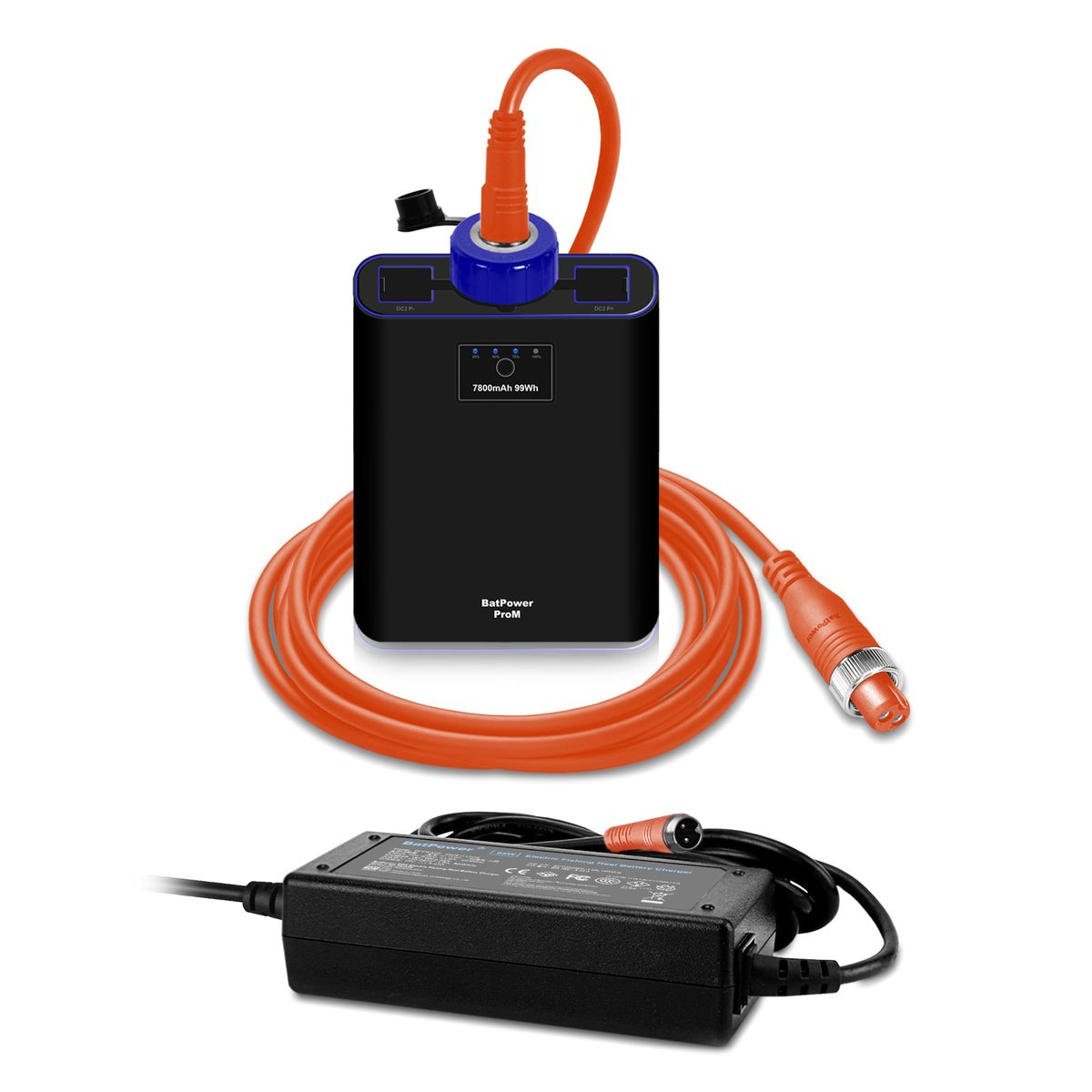

Images: BatPower
- Compatible reels: Command Z/CZ-20, Z/CZ-15, CZ-10SP, CZ-10HP, CZ-9, CZ-9S, CAC-5SC, CAT-5S, CAC-3JPC, CAT-3S, AC-3JP, CX-4NP, CX-6NS, CX-6GT, CX-8GT, CX-9HD and more
- Not compatible with Daiwa, Shimano or Banax
- 18-month warranty, 30-day refunds and free US shipping
- An eBay listing describes the 7,800 mAh version as model FM08B, Li-ion in an aluminum case, made in China, at $169.99
What’s not published: voltage, weight, dimensions, cycle life and charge time. For 24V-only reels such as the CZ-9 Kinme Special, confirm with BatPower that the ProM supports your reel before ordering.
Which size? The 7,800 mAh (99 Wh) version is easy to fly with and suits compact reels like the AT-5S. The 15,000 mAh (220 Wh) version is the one for full deep drop days. See our BatPower review.
Other ways to power a Miya Epoch
Hard-wired boat power. The most reliable option for big Command reels. Run heavy-gauge wire from the batteries to a marine outlet, fuse each circuit, and use Miya Epoch’s power cord from the outlet to the reel.
A 24V setup. For 24V reels, wire two identical 12V batteries in series (Miya Epoch supplies a series cord with the CZ-20 24V). Keep both batteries the same type, age and charge.
Other lithium packs. Many US reel batteries are built with Daiwa/Shimano plugs and don’t fit Miya Epoch without an adapter. BatPower says its ProM is the Miya Epoch version for that reason.
Choosing power for your Miya Epoch
| Your reel | Suggested power |
|---|---|
| AT-5S, AC-3JP (12V), light to mid-depth | BatPower ProM 7.8Ah or 15Ah |
| CZ-10, CZ-15, full days deep dropping | BatPower ProM 15Ah or hard-wired boat power |
| CZ-20 (12V) | Hard-wired boat power; large high-current battery |
| CZ-20 24V, CZ-9 Kinme Special | Two 12V batteries in series, or a 24V system |
Safety and care
- Fuse every circuit and size the fuse to the reel’s maximum draw.
- Keep connectors clean and dry. Corroded plugs are a common cause of power loss.
- Don’t mix batteries in a 24V series pair.
- Charge lithium packs only with their own charger, and never charge a wet or damaged pack.
Pros and cons
Pros
- Miya Epoch publishes clear voltage and amp-draw figures
- Official cords in four lengths
- Several reels available in 24V for more power and speed
- A dedicated third-party battery (BatPower ProM) exists
- Technotren says the CZ-20’s ATC saves power
Cons
- No Miya Epoch-branded battery or charger
- High current on big reels (up to 23 A at 12V on the CZ-20)
- 24V reels need a series battery setup
- Most US reel batteries don’t fit Miya Epoch plugs
- BatPower doesn’t publish ProM voltage or weight
Power options compared
| Option | Capacity | Fits Miya Epoch? | Price |
|---|---|---|---|
| BatPower ProM 7.8Ah | 7,800 mAh / 99 Wh | Yes | $179.99 |
| BatPower ProM 15Ah | 15,000 mAh / 220 Wh | Yes | $339.99 |
| Shimano BT Master 11AH | 11Ah | No (Shimano only) | ¥78,000 |
| Daiwa Super Lithium 12000WP | 12Ah | No (Daiwa only) | ¥78,000 |
| Hard-wired boat power | Boat battery bank | Yes, with Miya Epoch cord | Wiring cost |
Where to buy
Cords
– Alltackle · 1-888-810-7283 · alltackle.com: 15′ ($89.99) and 30′ ($139.99) cords
– Melton Tackle: Miya Epoch power cord (price not confirmed)
– Miya Epoch Australia · 1300 649 228 · miyaepoch.com.au
Batteries
– BatPower, 696 Arrow Grand Circle, Covina, CA 91722 · +1 626-789-2018 · batpower.com
Reels and service
– Technotren, Inc., Torrance, CA (Miyamae’s listed US agent; contact details may be out of date)
Verdict
Miya Epoch builds some of the most powerful electric reels you can buy, but it leaves the battery to you. Use its published amp-draw figures to size your power. A BatPower ProM 15Ah suits mid-size Command reels for a full day. The big CZ-20 is happiest on hard-wired boat power, and 24V models need a series pair of batteries. Whatever you choose, use Miya Epoch’s own power cords and fuse every circuit.
Deep-Drop.com rating: Power data 4.5/5 · Accessory range 3.5/5 · Battery availability 3/5
FAQ
Does Miya Epoch make a battery?
We found no Miya Epoch-branded battery. Miya Epoch sells power cords; BatPower makes the ProM battery for Command reels.
How many amps does a Miya Epoch CZ-20 draw?
1.4–23 A at 12V and 0.9–12 A at 24V, according to Miya Epoch Japan.
Can I run a 24V Miya Epoch on one battery?
Not a standard 12V battery. You need two 12V batteries in series or a 24V system. The CZ-20 24V comes with a series connection cord.
Where can I buy a Miya Epoch power cord in the US?
Alltackle sells 15′ ($89.99) and 30′ ($139.99) Miya Epoch cords.
Details were checked against miyaepoch.jp, miyamae.co.jp, Technotren, Miya Epoch Australia, Alltackle and BatPower on September 26, 2026.
